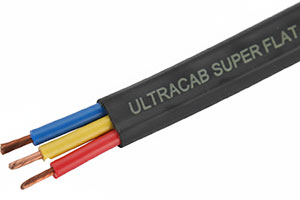

“ULTRACAB” 3 Core Super Flat Cables have been specifically designed for submersible pump motors. The manufactured keeping in mind tough and difficult conditions in which they have to operate.

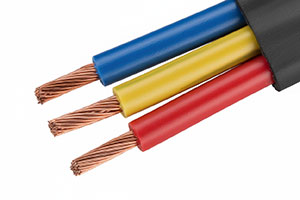

  • CONDUCTOR : The conductors are drawn from bright electrolytic grade copper annealed and bunched together & have 99.97% Purity.
  • INSULATION : Bunched conductors are insulated with specially formulated PVC compound having high insulation resistance values.
  • SHEATHNG : 3 Core are in parallel position and sheathed with a special grade of PVC Compound which is impervious to water, grease, oil etc.
Advance Features :
Temperature: -40°C to 105°C
Flexibility: Higher Flexibility
Insulation: Two Layers
Conductor resistance: 10% Lower Resistance than Normal Flat Cable
Moisture Resistance: At 80°C
Gripping: Knurling on Outer Sheath for Accurate Gripping
Copper Purity: 99.97% (IACS)

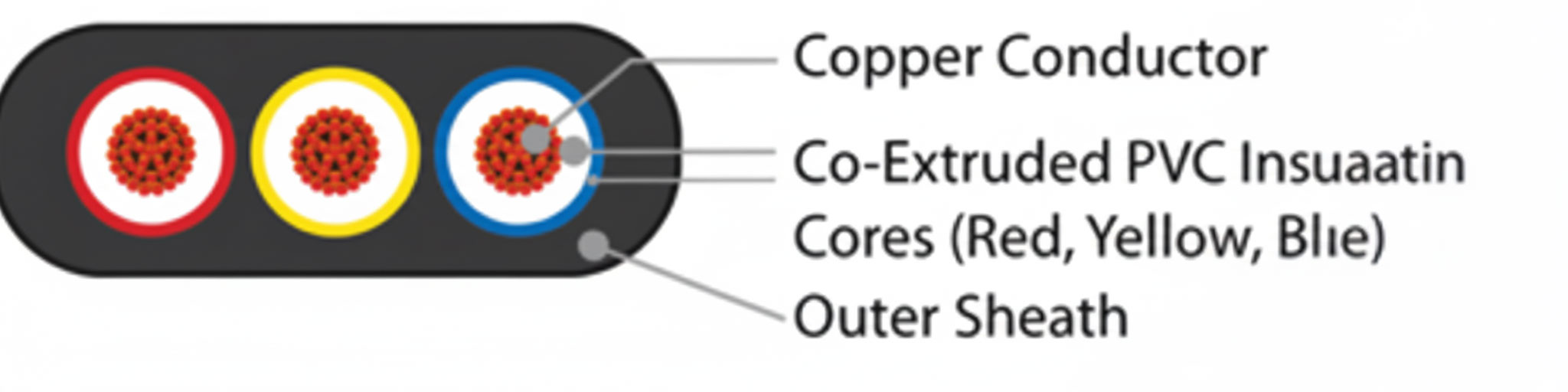

Construction of Flat Cable

  • APPLICATION : Ideal For Irrigation Pumps, Drinking Water Supply Pumps, Offshore Drilling Rings, Firefighting Equipment, Sewage Treatment Plants, Sea Water Handling Equipments
Size of Conductor Number/Nom. Dia. of Wires (Nom.) Thickness of Insulation (Nom.) Sheath Thickness (Nom.) Approx Overall Dimension (W*T) Normal Flat Resis tance (Max.). @20⁰C Ultacab Super Flat Resis tance Nomal Flat Current Carrying Capacity Ultacab Super Flat Current Carrying Capacity
(In Sq. mm) mm mm mm mm Ohm/Km Ohm/Km Amp. Amp.
1.50 22/0.30 0.6 0.9 11.6*5.5 12.10 10.45 16 18
2.50 36/0.30 0.7 1.00 13.9 * 6.4 7.41 6.45 22 25
4.00 56/0.30 0.8 1.10 16.1 * 7.1 4.95 4.21 29 33
6.00 84/0.30 1.0 1.15 18.6 * 8.0 3.30 2.80 37 42
10.0 140/0.30 1.0 1.40 23.4 * 10.0 1.91 1.65 51 58
16.0 226/0.30 1.0 1.40 27.0 * 11.4 1.21 1.02 68 77
25.0 354/0.30 1.2 2.00 35.4 * 15.0 0.780 0.678 86 98
35.0 495/0.30 1.2 2.00 39.3 * 16.3 0.554 0.480 110 125
